Four-point contact ball Slewing Ring Bearing

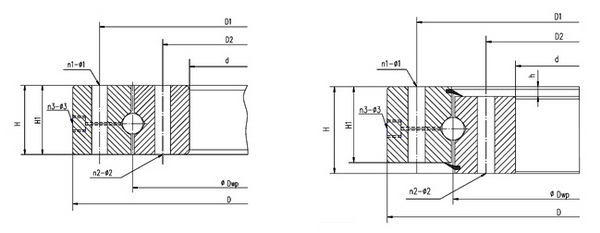

Specification and drawing of Four-point contact ball Slewing Ring Bearing




Click "Bearing No." to view its drawing



Boundary Dimensions

Weight



Bearing Number

D

d

H

Without Gear

mm

kg

602

398

80

75.8

010.30.500.12

662

458

80

94

010.30.560.**

732

528

80

110

010.30.630.**

812

608

80

120

010.30.710.**

1098

893

90

126

010.30.955.11

922

678

100

256

010.40.800.**

1022

778

100

240

010.40.900.**

1122

878

100

305

010.40.1000.**

1242

998

100

300

010.40.1120.**

1390

1110

110

420

010.45.1250.**

1540

1260

110

480

010.45.1400.**

1740

1460

110

550

010.45.1600.**

1940

1660

110

610

010.45.1800.**

2178

1825

144

1100

010.60.2000.**

2418

2065

144

1250

010.60.2240.**

2678

2325

144

1400

010.60.2500.**

2978

2625

144

1600

010.60.2800.**

3376

2922

174

2800

010.75.3150.**

3776

3322

174

3200

010.75.3550.**

4226

3772

174

3600

010.75.4000.**

4726

4272

174

4000

010.75.4500.**



Boundary Dimensions

Weight



Bearing Number

D

d

H

External Gear

mm

kg

629

398

80

75.8

011.30.500.**

628.8

398

80

75.8

012.30.500.**

689

458

80

94

011.30.560.**

688.8

458

80

94

012.30.560.**

772.8

528

80

110

011.30.630.**

774.4

528

80

110

012.30.630.**

850.8

608

80

120

011.30.710.**

854.4

608

80

120

012.30.710.**

966.4

678

100

256

011.40.800.**

968

678

100

256

012.40.800.**

1062.4

778

100

240

011.40.900.**

1068

778

100

240

012.40.900.**

1188

878

100

305

011.40.1000.12

1185.6

878

100

305

012.40.1000.**

1298

998

100

300

011.40.1120·**

1305.6

998

100

300

012.40.1120.**

1298

998

100

352

011.40.1120.12K

1305.6

998

100

334

012.40.1120.12K1

1449.6

1110

110

420

011.45.1250.**

1453.2

1110

110

420

012.45.1250.**

1605.6

1260

110

480

011.45.1400.**

1607.2

1260

110

480

012.45.1400.**

1817.2

1460

110

550

011.45.1600.**

1820.8

1460

110

550

012.45.1600.**

2013.2

1660

110

610

011.45.1800.**

2012.8

1660

110

610

012.45.1800.**

2013.2

1660

110

684

011.45.1800.05

2268.8

1825

144

1100

011.60.2000.**

2264.4

1825

144

970

012.60.2000.12K

2264.4

1825

144

1100

012.60.2000.**

2492.8

2065

144

1250

011.60.2240.**

2498.4

2065

144

1250

012.60.2240.**

2768.4

2325

144

1400

011.60.2500.**

2776

2325

144

1400

012.60.2500.**

2768.4

2325

144

890

011.60.2500.12

3074.4

2625

144

1600

011.60.2800.**

3076

2625

144

1600

012.60.2800.**

3476

2922

174

2800

011.75.3150.**

3471.6

2922

174

2800

012.75.3150.**

3876

3322

174

3200

011.75.3550.**

3889.6

3322

174

3200

012.75.3550.**

4329.6

3772

174

3600

011.75.4000.**

4345

3772

174

3600

012.75.4000.**

4835.6

4272

174

4000

011.75.4500.**

4845

4272

174

4000

012.75.4500.**



Boundary Dimensions

Weight



Bearing Number

D

d

H

Internal Gear

mm

kg

602

367

80

75.8

013.30.500.**

602

368.4

80

75.8

014.30.500.**

662

427

80

94

013.30.560.**

662

428.4

80

94

014.30.560.12

732

494.4

80

110

013.30.630.**

732

491.2

80

110

014.30.630.**

812

572.4

80

120

013.30.710.**

812

571.2

80

120

014.30.710.**

922

635.2

100

256

013.40.800.12

922

634

100

256

014.40.800.**

1022

739.2

100

240

013.40.900.**

1022

734

100

240

014.40.900.**

1122

824

100

305

013.40.1000.**

1122

820.8

100

305

014.40.1000.**

1242

944

100

300

013.40.1120.**

1242

940.8

100

300

014.40.1120.**

1390

1048.8

110

420

013.45.1250.**

1390

1041.6

110

420

014.45.1250.**

1540

1192.8

110

480

013.45.1400.**

1540

1195.6

110

480

014.45.1400.**

1740

1391.6

110

550

013.45.1600.**

1740

1382.4

110

550

014.45.1600.**

1940

1573.6

110

610

013.45.1800.**

1940

1574.4

110

610

014.45.1800.**

2178

1734.4

144

1100

013.60.2000.**

2178

1735.2

144

1100

014.60.2000.**

2418

1990.4

144

1250

013.60.2240.**

2418

1987.2

144

1250

014.60.2240.**

2678

2339.2

144

1400

013.60.2500.**

2678

2228

144

1400

014.60.2500.**

2978

2527.2

144

1600

013.60.2800.**

2978

2528

144

1600

014.60.2800.**

3376

2828

174

2800

013.75.3150.**

3376

2824.8

174

2800

014.75.3150.**

3776

3228

174

3200

013.75.3550.**

3776

3220.8

174

3200

014.75.3550.**

4226

3660.8

174

3600

013.75.4000.**

4226

3660

174

3600

014.75.4000.**

4726

4166.8

174

4000

013.75.4500.**

4726

4160

174

4000

014.75.4500.**

Remark: ** means different material:
01-----45BT,         02-----45BZ,       03-----42CrMoT,  04----42CrMoZ,   05-----5CrMnMoT,  06----5CrMnMoZ
07-----42SiMnT,   08-----42SiMnZ, 09-----45MnT,     10-----45MnZ,     11-----50MnT,         12-----50MnZ

PLease download catalog of four-point contact ball slewing ring bearing to learn more detail specification information
