JCB slewing bearing

Standard series KD 600 (1)

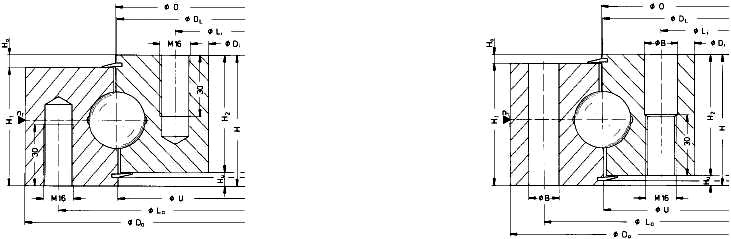

Bearing without gear

Drawing No.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	[kg]	Da	Di	H
	[kg]	[mm]	[mm]	[mm]
060.22.0370.301.11.1504	35	456	289	59
060.22.0505.000.11.1503	44	585	425	58
060.22.0575.502.11.1503	52	655	500	62
060.22.0660.001.11.1503	59	740	580	58
060.25.0475.000.11.1504	50	565	385	64
060.25.0555.000.11.1504	61	650	460	63
060.30.0550.100.11.1504	73	650	450	75
060.35.0680.000.11.1503	131	800	560	82
060.45.0805.001.11.1504	215	948	662	99

Please download detail technical specification
