JCB slewing bearing


Standard series KD 320 (2)

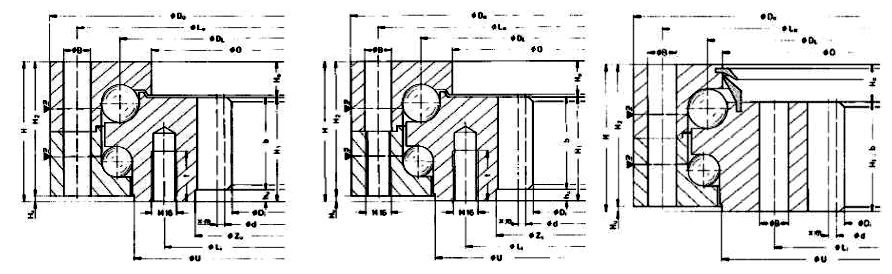

Double-row ball bearing slewing ring
Bearing with internal gear
Drawing No. Weight Outer diameter (O.D.) Inner diameter (I.D.) Overall height
[kg] Da Di H
[mm] [mm] [mm]
012.18.0748.000.11.1504 90 823 648 77
012.18.0748.002.21.1504
012.20.0895.000.11.1504 118 971 784 80
012.20.0895.001.21.1504
012.20.1085.000.11.1504 154 1161 960 90
012.20.1085.001.21.1504
012.20.1360.000.11.1504 213 1440 1210 82
012.20.1360.001.21.1504
012.25.1360.600.11.1503 336 1460 1180 102
012.25.1360.601.21.1503
012.25.1600.000.11.1503 405 1700 1404 102
012.25.1600.001.21.1503
012.30.1381.000.11.1503 474 1500 1164 120
012.30.1381.001.41.1503
012.30.1630.000.11.1503 558 1750 1416 120
012.30.1630.001.41.1503
012.30.1800.000.11.1503 643 1920 1568 120
012.30.1800.001.41.1503
012.30.1995.000.11.1503 716 2115 1764 120
012.30.1995.001.41.1503
012.30.2330.000.11.1503 839 2450 2100 120
012.30.2330.001.41.1503
012.30.2538.000.11.1503 963 2660 2288 120
012.30.2538.001.41.1503
012.35.1960.400.11.1503 851 2090 1722 138
012.35.1960.401.41.1503
012.35.2500.000.11.1503 1112 2630 2254 138
012.35.2500.001.41.1503
012.35.2690.000.11.1503 1225 2820 2432 138
012.35.2690.001.41.1503
012.40.2199.300.11.1502 1238 2350 1920 156
012.40.2199.301.41.1502
012.40.2622.400.11.1502 1495 2770 2336 156
012.40.2622.401.41.1502
012.40.2950.000.11.1502 1764 3100 3646 156
012.40.2950.001.41.1502
012.40.3300.000.11.1502 1935 3450 3006 156
012.40.3300.001.41.1502
012.45.2940.000.19.1502 1950 3100 2656 175
012.45.2940.001.49.1502
012.45.3400.100.19.1502 2435 3560 3080 175
012.45.3400.101.49.1502
012.50.2559.201.49.1502 1892 2725 2250 185
012.50.3520.001.49.1502 2657 3685 3200 185
012.50.3739.001.49.1502 2823 3905 3420 185
012.50.3839.001.49.1502 2905 4005 3520 185
Please download detail technical specification


1. Standard series KD 210 (single-row ball slewing rings)

   Standard bearing type 21, standard number of bolt holes

   Standard bearing type 21, double number of bolt holes

   Standard bearing type 21, Bearing with limited clearance

   Standard bearing type 110, standard bearing

   Standard bearing type 110, Bearing with limited clearance

2. Standard series KD 320 (Double-row ball slewing rings)

   Bearing with external gear

   Bearing with internal gear

3. Standard series KD 600 (Four-point contact ball slewing rings)

   Bearing without gear

   Bearing with external gear

   Bearing with internal gear

   Standard bearing type 621, standard bearing

   Standard bearing type 621, Bearing with limited clearance

   Standard bearing type 625, standard bearing

   Standard bearing type 625, Bearing with limited clearance

4. Standard series RD 700 (Ball and roller slewing rings)

  Bearing with external gear

5. Standard series RD 800 (Cross roller slewing rings)

   Bearing with external gear

   Bearing with internal gear

6. Standard series RD 900 (Triple-row roller slewing rings)

   Bearing with external gear

   Bearing with internal gear
