JCB slewing bearing


Standard series KD 320 (1)

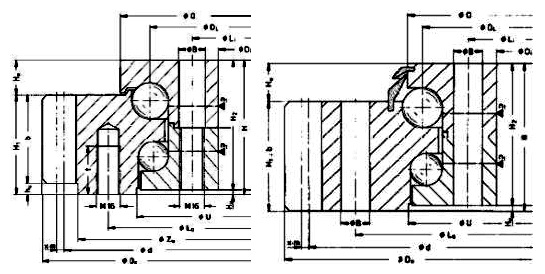

Double-row ball bearing slewing ring
Bearing with external gear
Drawing No. Weight Outer diameter (O.D.) Inner diameter (I.D.) Overall height
[kg] Da Di H
[mm] [mm] [mm]
011.20.0755.000.11.1504 101 862,8 679 82
011.20.0755.001.21.1504
011.20.0971.000.11.1504 128 1078.4 895 82
011.20.0971.001.21.1504
011.20.1220.000.11.1504 178 1342.4 1140 82
011.20.1220.001.21.1504
011.20.1385.000.11.1504 201 1502.4 1305 82
011.20.1385.001.21.1504
011.25.1200.600.11.1503 301 1378 1100 102
011.25.1200.601.21.1503
011.25.1461.000.11.1503 381 1648 1360 102
011.25.1461.001.21.1503
011.25.1800.000.11.1503 488 2001.6 1700 102
011.25.1800.001.41.1503
011.30.1440.190.11.1503 520 1653.6 1320 120
011.30.1440.191.41.1503
011.30.1734.000.11.1503 636 1953.6 1615 120
011.30.1734.001.41.1503
011.30.2031.600.11.1503 755 2253.6 1910 120
011.30.2031.601.41.1503
011.30.2235.000.11.1503 827 2457.6 2115 120
011.30.2235.001.41.1503
011.35.1750.700.11.1503 789 1985,2 1620 138
011.35.1750.701.41.1503
011.35.2220.000.11.1503 1019 2461,2 2090 138
011.35.2220.001.41.1503
011.35.2620.000.11.1503 1244 2876,8 2490 138
011.35.2620.001.41.1503
011.40.2240.000.11.1502 1316 2524,8 2090 156
011.40.2240.001.41.1502
011.40.2619.000.11.1502 1615 2912,4 2465 156
011.40.2619.001.41.1502
011.40.2795.000.11.1502 1723 3096,0 2645 156
011.40.2795.001.41.1502
011.40.2915.000.11.1502 1790 3216,0 2765 156
011.40.2915.001.41.1502
011.40.3150.000.11.1502 1969 3456,0 3000 156
011.40.3150.001.41.1502
011.50.2987.001.49.1502 2288 3290,4 2820 185
011.50.3167.001.49.1502 2431 3470,4 3000 185
011.50.3347.001.49.1502 2566 3650,4 3180 185
011.50.3567.001.49.1502 2702 3866,4 3400 185
011.50.3747.001.49.1502 2837 4046,4 3580 185
011.50.4140.001.49.1502 3282 4456,0 3970 185

Please download detail technical specification
