Series 2 slewing bearing

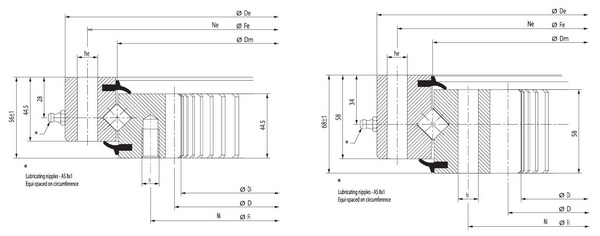

Cross roller slewing ring bearing

Internal Gear

Click "Bearing No." to view its detail drawing

Main dimensions
Mass
Designation
( view drawing )
De
Dm
Di
Fe
Kg
mm
mm
mm
mm
484
414
325
460
31
614
544
444
590
43
714
644
546
690
50
814
744
648
790
58
914
844
736
890
69
1014
944
840
990
76
1164
1094
984
1140
91
1289
1204
1072
1257
148
1399
1314
1182
1367
161
1509
1424
1292
1477
175
1619
1534
1402
1587
189
1752
1644
1495
1708
239
1862
1754
1605
1818
256
2012
1904
1729
1968
304

Detail specification information
