JCB slewing bearing

Standard series KD 210 (4)

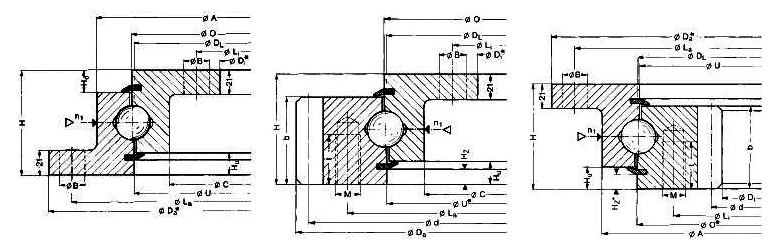

Standard bearing type 110, standard bearing

Without gear

Drawing No.	Ball track dia.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	DL	[kg]	Da	Di	H
	[mm]		[mm]	[mm]	[mm]
280.30.0900.013	955	131	1100	805	90
Typ 110/1100.0
280.30.1000.013	1055	145	1200	905	90
Typ 110/1200.0
280.30.1100.013	1155	159	1300	1005	90
Typ 110/1300.0
280.30.1200.013	1255	172	1400	1105	90
Typ 110/1400.0
280.30.1300.013	1355	186	1500	1205	90
Typ 110/1500.0
280.30.1400.013	1455	200	1600	1305	90
Typ 110/1600.0

Please download detail technical specification

With external gear

Drawing No.	Ball track dia.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	DL	[kg]	Da	Di	H
	[mm]		[mm]	[mm]	[mm]
281.30.0900.013	955	165	1096.2	805	90
Typ 110/1100.1
281.30.1000.013	1055	183	1198	905	90
Typ 110/1200.1
281.30.1100.013	1155	200	1298	1005	90
Typ 110/1300.1
281.30.1200.013	1255	216	1398	1105	90
Typ 110/1400.1
281.30.1300.013	1355	234	1498	1205	90
Typ 110/1500.1
281.30.1400.013	1455	250	1598	1305	90
Typ 110/1600.1

Please download detail technical specification

With internal gear

Drawing No.	Ball track dia.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	DL	[kg]	Da	Di	H
	[mm]		[mm]	[mm]	[mm]
282.30.0900.013	955	159	1100	812	90
Typ 110/1100.2
282.30.1000.013	1055	176	1200	912	90
Typ 110/1200.2
282.30.1100.013	1155	192	1300	1012	90
Typ 110/1300.2
282.30.1200.013	1255	208	1400	1112	90
Typ 110/1400.2
282.30.1300.013	1355	226	1500	1212	90
Typ 110/1500.2
282.30.1400.013	1455	243	1600	1310	90
Typ 110/1600.2

Please download detail technical specification

1. Standard series KD 210 (single-row ball slewing rings)

Standard bearing type 21, standard number of bolt holes

Standard bearing type 21, double number of bolt holes

Standard bearing type 21, Bearing with limited clearance

Standard bearing type 110, standard bearing

Standard bearing type 110, Bearing with limited clearance

2. Standard series KD 320 (Double-row ball slewing rings)

Bearing with external gear

Bearing with internal gear

3. Standard series KD 600 (Four-point contact ball slewing rings)

Bearing without gear

Bearing with external gear

Bearing with internal gear

Standard bearing type 621, standard bearing

Standard bearing type 621, Bearing with limited clearance

Standard bearing type 625, standard bearing

Standard bearing type 625, Bearing with limited clearance

4. Standard series RD 700 (Ball and roller slewing rings)

Bearing with external gear

5. Standard series RD 800 (Cross roller slewing rings)

Bearing with external gear

Bearing with internal gear

6. Standard series RD 900 (Triple-row roller slewing rings)

Bearing with external gear

Bearing with internal gear
