Series 7 slewing bearing

RK- series slewing bearing

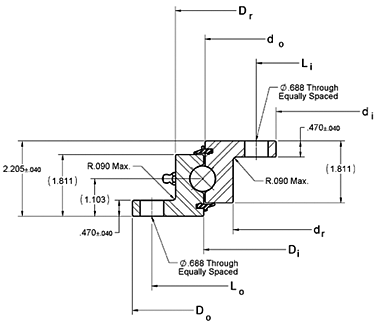

Without gear

Series 7	OUTLINE DIMENSIONS AND WEIGHT
	OUTLINE DIMENSIONS AND WEIGHT
	Do	di	Dr	Di	do	dr	G APPROX.
P/N	Do	di	Dr	Di	do	dr	G APPROX.
P/N	(in)	(in)	(in)	(in)	(in)	(in)	(lbs)
RK6-16P1Z	20.390	11.970	17.870	16.220	16.140	14.490	58
RK6-22P1Z	25.510	17.090	22.990	21.340	21.260	19.610	76
RK6-25P1Z	29.450	21.030	26.930	25.280	25.200	23.550	89
RK6-29P1Z	33.390	24.970	30.870	29.220	29.140	27.490	104
RK6-33P1Z	37.320	28.900	34.800	33.150	33.070	31.420	118
RK6-37P1Z	41.260	32.840	38.740	37.090	37.010	35.360	132
RK6-43P1Z	47.170	38.750	44.650	43.000	42.920	41.270	153
Tolerances	±.040	+.030	+.000	Ref.	Ref.	Ref.
Tolerances	±.040	-.000	-.080	Ref.	Ref.	Ref.

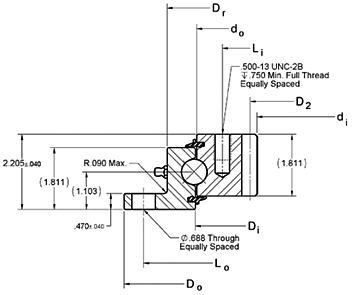

Internal gear

Series 7	OUTLINE DIMENSIONS AND WEIGHT
	OUTLINE DIMENSIONS AND WEIGHT
	Do	di	Dr	Di	do	dr	G APPROX.
P/N	Do	di	Dr	Di	do	dr	G APPROX.
P/N	(in)	(in)	(in)	(in)	(in)	(in)	(lbs)
RK6-16N1Z	20.390	12.850	17.870	16.220	16.140		65
RK6-22N1Z	25.510	17.600	22.990	21.340	21.260		90
RK6-25N1Z	29.450	21.600	26.930	25.280	25.200		106
RK6-29N1Z	33.390	25.600	30.870	29.220	29.140		121
RK6-33N1Z	37.320	29.133	34.800	33.150	33.070		148
RK6-37N1Z	41.260	33.133	38.740	37.090	37.010		165
RK6-43N1Z	47.170	39.133	44.650	43.000	42.920		188
Tolerances	±.040	±.040	+.000	Ref.	Ref.	+.080
Tolerances	±.040	±.040	-.080	Ref.	Ref.	-.000

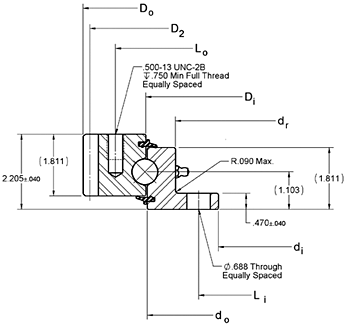

External gear

Series 7	OUTLINE DIMENSIONS AND WEIGHT
	OUTLINE DIMENSIONS AND WEIGHT
	Do	di	Dr	Di	do	dr	G APPROX.
P/N	Do	di	Dr	Di	do	dr	G APPROX.
P/N	(in)	(in)	(in)	(in)	(in)	(in)	(lbs)
RK6-16E1Z	19.900	11.970		16.220	16.140	14.490	72
RK6-22E1Z	25.150	17.090		21.340	21.260	19.610	96
RK6-25E1Z	29.150	21.030		25.280	25.200	23.550	115
RK6-29E1Z	32.900	24.970		29.220	29.140	27.490	128
RK6-33E1Z	37.200	28.900		33.150	33.070	31.420	152
RK6-37E1Z	41.200	32.840		37.090	37.010	35.360	172
RK6-43E1Z	46.867	38.750		43.000	42.920	41.270	189
Tolerances	+.000	±.040	Ref.	Ref.	Ref.	+.080
Tolerances	-.030	±.040	Ref.	Ref.	Ref.	-.000
