Series 2 slewing bearing

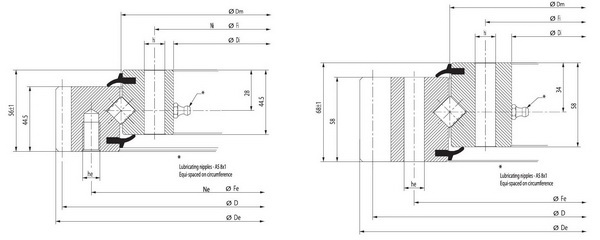

Cross roller slewing ring bearing



External Gear

Click "Bearing No." to view its detail drawing

Main dimensions
Mass
Designation
( view drawing )
De
Dm
Di
Fe
Kg
mm
mm
mm
mm
503,3
414
344
455
32
640,3
544
474
585
44
742,3
644
574
685
52
838,1
744
674
785
59
950,1
844
774
885
71
1046,1
944
874
985
77
1198,1
1094
1024
1135
91
1338
1204
1119
1257
154
1448
1314
1229
1367
168
1558
1424
1339
1477
182
1668
1534
1449
1587
195
1791
1644
1536
1708
242
1901
1754
1646
1818
258
2073,4
1904
1796
1968
306

Detail specification information
