JCB slewing bearing

Standard series KD 210 (1)

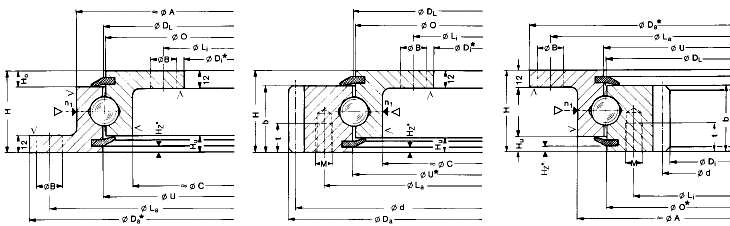

Standard bearing type 21, standard number of bolt holes

Without gear

Drawing No.	Ball track dia.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	DL	[kg]	Da	Di	H
	[mm]		[mm]	[mm]	[mm]
230.20.0400.013	414	23.4	518	304	56
Typ 21/520.0
230.20.0500.013	544	31.0	648	434	56
Typ 21/650.0
230.20.0600.013	644	36.4	748	534	56
Typ 21/750.0
230.20.0700.013	744	42.8	848	634	56
Typ 21/850.0
230.20.0800.013	844	47.8	948	734	56
Typ 21/950.0
230.20.0900.013	944	53.1	1048	834	56
Typ 21/1050.0
230.20.1000.013	1094	61.9	1198	984	56
Typ 21/1200.0

Please download detail technical specification

With external gear

Drawing No.	Ball track dia.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	DL	[kg]	Da	Di	H
	[mm]		[mm]	[mm]	[mm]
231.20.0400.013	414	29.3	504	304	56
Typ 21/520.1
231.20.0500.013	544	39.5	640.8	434	56
Typ 21/650.1
231.20.0600.013	644	47.6	742.8	534	56
Typ 21/750.1
231.20.0700.013	744	53.5	838.8	634	56
Typ 21/850.1
231.20.0800.013	844	65.1	950.4	734	56
Typ 21/950.1
231.20.0900.013	944	69.6	1046.4	834	56
Typ 21/1050.1
231.20.1000.013	1094	83.0	1198.4	984	56
Typ 21/1200.1

Please download detail technical specification

With internal gear

Drawing No.	Ball track dia.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	DL	[kg]	Da	Di	H
	[mm]		[mm]	[mm]	[mm]
232.20.0400.013	414	27,1	518	326,5	56
Typ 21/520.2
232.20.0500.013	544	36,9	648	445,2	56
Typ 21/650.2
232.20.0600.013	644	43,7	748	547,2	56
Typ 21/750.2
232.20.0700.013	744	51,1	848	649,2	56
Typ 21/850.2
232.20.0800.013	844	61,6	948	737,6	56
Typ 21/950.2
232.20.0900.013	944	65,8	1048	841,6	56
Typ 21/1050.2
232.20.1000.013	1094	80,7	1198	985,6	56
Typ 21/1200.2

Please download detail technical specification
