JCB slewing bearing

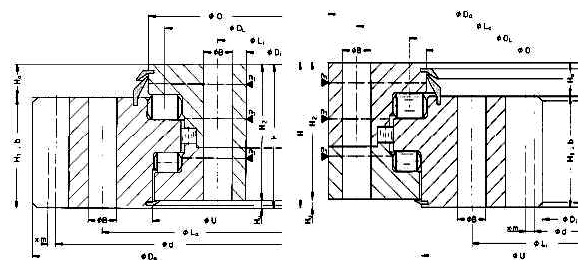

Standard series RD 900 (1)

Bearing with external gear

Drawing No.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	[kg]	Da	Di	H
		[mm]	[mm]	[mm]
191.25.1800.990.41.1502	1126	2076.8	1619	147
191.25.2000.990.41.1502	1216	2268.8	1819	147
191.25.2240.990.41.1502	1378	2516.4	2059	147
191.25.2500.990.41.1502	1567	2786.4	2319	147
191.25.2800.990.41.1502	1785	3096	2619	147
191.20.1250.990.41.1502	542	1461.6	1103	132
191.20.1400.990.41.1502	646	1635.2	1253	132
191.20.1600.990.41.1502	731	1831.2	1453	132
191.20.1800.990.41.1502	844	2044.8	1653	132
191.20.2000.990.41.1502	912	2236.8	1853	132
191.32.2240.990.41.1502	1975	2552,4	2022	181
191.32.2500.990.41.1502	2260	2822,4	2282	181
191.32.2800.990.41.1502	2576	3136	2582	181
191.32.3150.990.41.1502	2828	3476	2932	181
191.32.3550.990.41.1502	3249	3889,6	3332	181
191.32.4000.990.41.1502	3752	4351,6	3782	181
191.40.2800.990.41.1502	3267	3136	2562	220
191.40.3150.990.41.1502	3812	3515.6	2912	220
191.40.3550.990.41.1502	4255	3911.6	3312	220
191.40.4000.990.41.1502	4805	4363.2	3762	220
191.40.4500.990.41.1502	5410	4867.2	4262	220
191.50.3150.990.41.1502	5298	3571.2	2885	268
191.50.3550.990.41.1502	5830	3955.2	3285	268
191.50.4000.990.41.1502	6578	4411.2	3735	268
191.50.4500.990.41.1502	7456	4915.2	4235	268
191.50.5000.990.41.1502	8259	5419.2	4735	268
191.50.5600.990.41.1502	9448	6019.2	5335	268
191.50.6300.990.41.1502	10536	6715.2	6035	268
191.50.6735.990.41.1502	11200	7147.2	6470	268
