JCB slewing bearing

Standard series KD 600 (6)

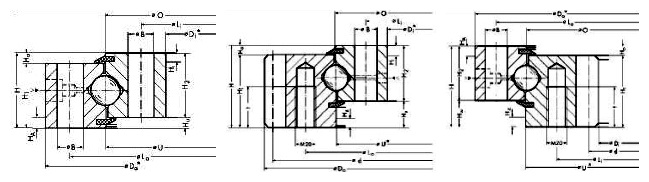

Standard bearing type 625, standard bearing

Without gear

Drawing No.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	[kg]	Da	Di	H
	[kg]	[mm]	[mm]	[mm]
060.25.0855.500.11.1503	100	955	755	63
060.25.0955.500.11.1503	113	1055	855	63
060.25.1055.500.11.1503	124	1155	955	63
060.25.1155.500.11.1503	139	1255	1055	63
060.25.1255.500.11.1503	148	1355	1155	63
060.25.1355.500.11.1503	161	1455	1255	63
060.25.1455.500.11.1503	171	1555	1355	63

Please download detail technical specification

With external gear

Drawing No.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	[kg]	Da	Di	H
	[kg]	[mm]	[mm]	[mm]
061.25.0855.500.11.1503	141	997.2	755	80
061.25.0955.500.11.1503	158	1096.2	855	80
061.25.1055.500.11.1503	172	1198	955	80
061.25.1155.500.11.1503	190	1298	1055	80
061.25.1255.500.11.1503	204	1398	1155	80
061.25.1355.500.11.1503	222	1498	1255	80
061.25.1455.500.11.1503	236	1598	1355	80

Please download detail technical specification

With internal gear

Drawing No.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	[kg]	Da	Di	H
		[mm]	[mm]	[mm]
062.25.0855.500.11.1503	133	955	710	80
062.25.0955.500.11.1503	150	1055	810	80
062.25.1055.500.11.1503	166	1155	910	80
062.25.1155.500.11.1503	183	1255	1010	80
062.25.1255.500.11.1503	198	1355	1110	80
062.25.1355.500.11.1503	215	1455	1210	80
062.25.1455.500.11.1503	229	1555	1310	80

Please download detail technical specification
