JCB slewing bearing

Standard series KD 600 (4)

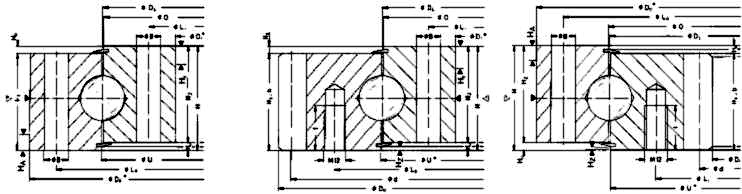

Standard bearing type 621, standard bearing

Without gear

Drawing No.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	[kg]	Da	Di	H
	[kg]	[mm]	[mm]	[mm]
060.20.0414.500.01.1503	29	486	342	56
060.20.0544.500.01.1503	37	616	472	56
060.20.0644.500.01.1503	44	716	572	56
060.20.0744.500.01.1503	52	816	672	56
060.20.0844.500.01.1503	60	916	772	56
060.20.0944.500.01.1503	67	1016	872	56
060.20.1094.500.01.1503	77	1166	1022	56

Please download detail technical specification

With external gear

Drawing No.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	[kg]	Da	Di	H
	[kg]	[mm]	[mm]	[mm]
061.20.0414.500.01.1503	31	504	342	56
061.20.0544.500.01.1503	43	640.8	472	56
061.20.0644.500.01.1503	52	742.8	572	56
061.20.0744.500.01.1503	59	838.8	672	56
061.20.0844.500.01.1503	71	950.4	772	56
061.20.0944.500.01.1503	77	1046.4	872	56
061.20.1094.500.01.1503	91	1198.4	1022	56

Please download detail technical specification

With internal gear

Drawing No.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	[kg]	Da	Di	H
	[kg]	[mm]	[mm]	[mm]
062.20.0414.500.01.1503	31	486	326.5	56
062.20.0544.500.01.1503	43	616	445.2	56
062.20.0644.500.01.1503	52	716	547.2	56
062.20.0744.500.01.1503	59	816	649.2	56
062.20.0844.500.01.1503	71	916	737.6	56
062.20.0944.500.01.1503	77	1016	841.6	56
062.20.1094.500.01.1503	91	1166	985.6	56

Please download detail technical specification
