JCB slewing bearing

Standard series KD 600 (3)

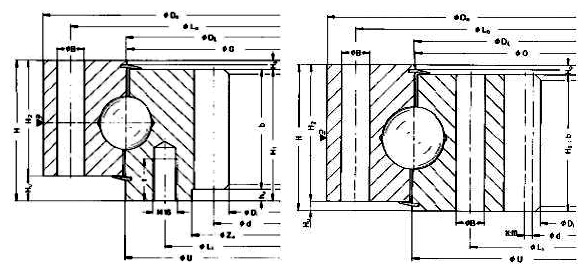

Bearing with internal gear

Drawing No.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	[kg]	Da	Di	H
		[mm]	[mm]	[mm]
062.25.0886.106.11.1504	109	980	784	77
062.25.0886.109.21.1504
062.25.1077.308.11.1504	148	1170	960	84
062.25.1077.304.21.1504
062.20.0400.000.11.1503	33	475	300	55
062.20.0400.001.21.1503
062.20.0450.000.11.1503	38	531	345	55
062.20.0450.001.21.1503
062.20.0560.000.11.1503	51	641	450	55
062.20.0560.001.21.1503
062.20.0630.000.11.1503	59	717	516	55
062.20.0630.001.21.1503
062.20.0710.000.11.1503	68	797	594	55
062.20.0710.001.21.1503
062.25.0886.800.11.1504	111	980	752	63
062.25.0886.801.21.1504
062.25.1077.890.11.1503	140	1169	930	63
062.25.1077.891.21.1503
062.25.1180.000.11.1504	185	1287	1020	69
062.25.1180.001.21.1504
062.30.1120.000.11.1504	206	1232	960	79
062.30.1120.001.21.1504
062.30.1250.000.11.1504	231	1362	1090	79
062.30.1250.001.21.1504
062.30.1400.000.11.1504	296	1512	1224	89
062.30.1400.001.21.1504
062.30.1600.000.11.1504	334	1712	1428	89
062.30.1600.001.21.1504
062.40.1500.000.19.1504	410	1634	1308	94
062.40.1500.001.29.1504
062.40.1700.007.19.1503	475	1834	1498	94
062.40.1700.008.29.1503
062.50.1800.001.49.1504	762	1971	1554	109
062.50.2000.001.49.1504	843	2171	1764	109
062.50.2240.001.49.1504	961	2411	1984	109
062.50.2490.001.49.1504	1053	2661	2240	109
062.50.2800.001.49.1504	1205	2971	2544	109

Please download detail technical specification

1. Standard series KD 210 (single-row ball slewing rings)

Standard bearing type 21, standard number of bolt holes

Standard bearing type 21, double number of bolt holes

Standard bearing type 21, Bearing with limited clearance

Standard bearing type 110, standard bearing

Standard bearing type 110, Bearing with limited clearance

2. Standard series KD 320 (Double-row ball slewing rings)

Bearing with external gear

Bearing with internal gear

3. Standard series KD 600 (Four-point contact ball slewing rings)

Bearing without gear

Bearing with external gear

Bearing with internal gear

Standard bearing type 621, standard bearing

Standard bearing type 621, Bearing with limited clearance

Standard bearing type 625, standard bearing

Standard bearing type 625, Bearing with limited clearance

4. Standard series RD 700 (Ball and roller slewing rings)

Bearing with external gear

5. Standard series RD 800 (Cross roller slewing rings)

Bearing with external gear

Bearing with internal gear

6. Standard series RD 900 (Triple-row roller slewing rings)

Bearing with external gear

Bearing with internal gear
