JCB slewing bearing

Standard series KD 600 (2)

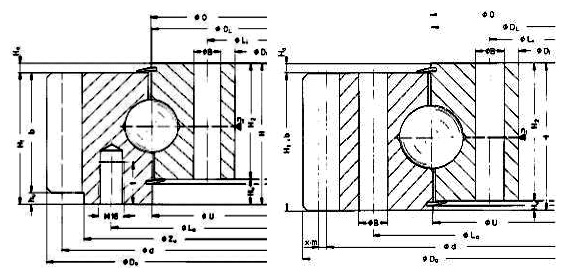

Bearing with external gear

Drawing No.	Weight	Outer diameter (O.D.)	Inner diameter (I.D.)	Overall height
	[kg]	Da	Di	H
		[mm]	[mm]	[mm]
061.25.0764.103.11.1504	98	862.8	670	82
061.25.0764.106.21.1504
061.25.0980.107.11.1504	123	1078.4	886	79
061.25.0980.108.21.1504
061.20.0400.100.11.1503	35	499	325	55
061.20.0400.101.21.1503
061.20.0450.100.11.1503	39	554	369	55
061.20.0450.101.21.1503
061.20.0560.100.11.1503	53	670.8	479	55
061.20.0560.101.21.1503
061.20.0630.100.11.1503	61	742.8	543	55
061.20.0630.101.21.1503
061.20.0710.100.11.1503	67	820.8	623	55
061.20.0710.101.21.1503
061.25.0764.600.11.1503	95	886.8	671	63
061.25.0764.601.21.1503
061.25.0980.890.11.1503	124	1110.4	887	63
061.25.0980.891.21.1503
061.25.1120.000.11.1504	182	1278	1013	79
061.25.1120.001.21.1504
061.25.1250.100.11.1504	221	1408	1143	79
061.25.1250.101.21.1504
061.30.1180.000.11.1504	227	1338	1068	79
061.30.1180.001.21.1504
061.30.1320.000.11.1504	298	1497.6	1208	89
061.30.1320.001.21.1504
061.30.1500.200.11.1504	338	1677.6	1388	89
061.30.1500.201.21.1523
061.40.1400.000.19.1504	404	1593.6	1266	94
061.40.1400.001.29.1504
061.40.1600.008.19.1503	479	1803.2	1466	94
061.40.1600.009.29.1503
061.40.1800.013.19.1503	531	1999.2	1666	94
061.40.1800.014.29.1503
061.50.1900.001.49.1504	820	2139.2	1729	109
061.50.2130.001.49.1504	931	2380.8	1959	109
061.50.2355.001.49.1504	1024	2604.8	2184	109
061.50.2645.001.49.1504	1142	2892.8	2474	109

Please download detail technical specification
