Product

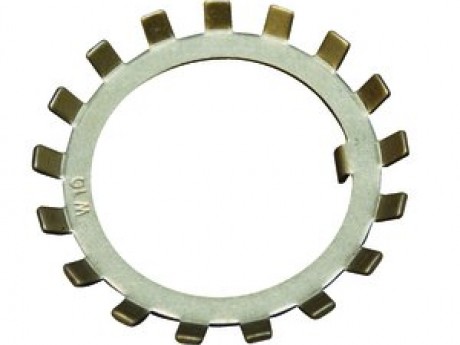

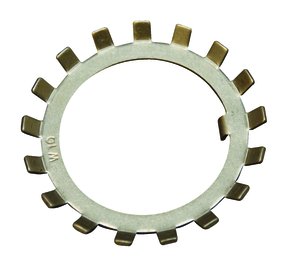

Product name： Bearing locking washer
Type： MB0-MB40
Precision grade：
Product description：

Designation
Basic Dimension

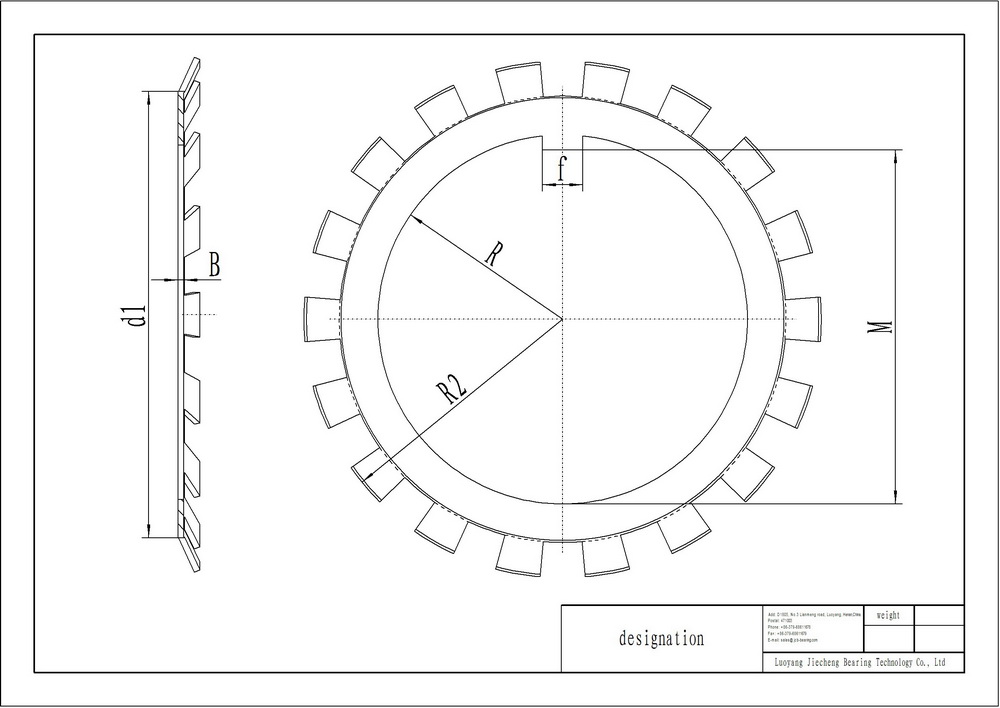

Structure
RE.weight

R
d1
R2
B
 f                    M
5
13.5
10.5
1
3
8.5
1
6
17
12.5
1
3
10.5
2
7.5
21
14
1
4
13.5
3
8.5
24
16
1
4
15.5
3
10
26
18
1
4
18.5
4
12.5
32
21
1.25
5
23
6
15
38
24.5
1.25
5
27.5
8
17.5
44
28.5
1.25
6
32.5
11
20
50
31
1.25
6
37.5
13
22.5
56
34.5
1.25
6
42.5
15
25
61
37
1.25
6
47.5
16
27.5
67
40.5
1.5
8
52.5
22
30
73
43
1.5
8
57.5
24
32.5
79
46
1.5
8
62.5
30
35
85
49
1.5
8
66.5
32
37.5
90
52
1.5
8
71.5
35
40
95
56
1.75
10
76.5
46
42.5
102
59.5
1.75
10
81.5
53
45
108
63
1.75
10
86.5
61
47.5
113
66.5
1.75
10
91.5
66
50
120
71
1.75
12
96.5
77
52.5
126
72.5
1.75
12
100.5
83
55
133
77
1.75
12
105.5
91
57.5
137
159
2
12
110.5
107
60
135
76
2
14
115
70
60
138
82
2
14
115
108
62.5
148
85
2
14
120
115
65
145
80.5
2
14
125
80
65
149
87.5
2
14
125
115
67.5
160
92.5
2
14
130
140
70
155
86
2
16
135
90
70
160
96
2
16
135
135
72.5
172
101
2
16
140
165
75
170
94.5
2
16
145
100
75
171
102.5
2
16
145
180
77.5
182
106
2.5
16
147.5
200
80
180
99.5
2.5
18
154
140
80
182
108.5
2.5
18
154
215
82.5
193
111
2.5
18
157.5
240
85
190
105.5
2.5
18
164
150
85
193
116
2.5
18
164
240
90
200
111
2.5
20
174
160
90
203
121
2.5
20
174
260
95
210
116
2.5
20
184
170
95
214
126
2.5
20
184
260
100
222
122.5
2.5
20
194
220
100
226
131
2.5
20
194
280
