Product

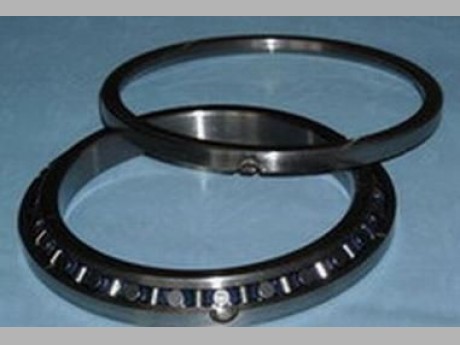

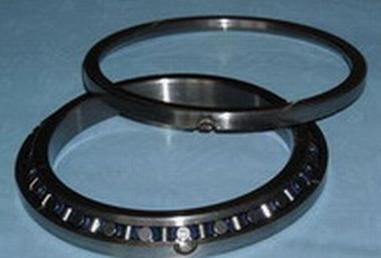

Product name： Cross roller bearing

Type：

Precision grade：

Product description： Cross roller bearing Cross roller bearing Cross roller bearing

Cross roller bearing

Bearing No.	Bearing No.	Boundary Dimensions （mm）				Basic Load Ratings
Sealed	Open	d	D	B.T	r(min.)	（N)		（kgf）
Sealed	Open	d	D	B.T	r(min.)	Cr	Cor	Cr	Cor
NRXT 2508DD	NRXT 2508E	25	41	8	0.6	4000	4400	410	450
NRXT 4010DD	NRXT 4010E	40	65	10	0.6	7700	9850	785	1010
NRXT 5013DD	NRXT 5013E	50	80	13	0.6	16400	20900	1670	2130
NRXT 6013DD	NRXT 6013E	60	90	13	0.6	17900	24600	1820	2510
NRXT 7013DD	NRXT 7013E	70	100	13	0.6	19300	28400	1960	2890
NRXT 8013DD	NRXT 8013E	80	100	13	0.6	20500	32000	2090	3250
NRXT 8016DD	NRXT 8016E	80	120	16	0.6	29800	42500	3050	4350
NRXT 9016DD	NRXT 9016E	90	130	16	1	31000	46000	3150	4700
NRXT 9020DD	NRXT 9020E	90	140	20	1	32000	49000	3250	5000
NRXT 10020DD	NRXT 10020E	100	150	20	1	33000	52500	3350	5350
NRXT 11020DD	NRXT 11020E	110	160	20	1	35000	59000	3600	6000
NRXT 12020DD	NRXT 12020E	120	170	20	1.1	36000	62000	3650	6350
NRXT 12025DD	NRXT 12025E	120	180	25	1.1	70000	110000	7150	11200
NRXT 13025DD	NRXT 13025E	130	190	25	1.1	72500	118000	7400	12000
NRXT 14025DD	NRXT 14025E	140	200	25	1.1	75000	125000	7650	12800
NRXT 15025DD	NRXT 15025E	150	210	25	1.1	77000	133000	7850	13600
NRXT 15030DD	NRXT 15030E	150	230	30	1.1	119000	192000	12200	19600
NRXT 20025DD	NRXT 20025E	200	260	25	1.5	88000	172000	9000	17500
NRXT 20030DD	NRXT 20030E	200	280	30	1.5	136000	247000	13800	25200
NRXT 25025DD	NRXT 25025E	250	310	25	2	98000	211000	10000	21500
NRXT 25030DD	NRXT 25030E	250	330	30	2	150000	300000	15300	30500
NRXT 30025DD	NRXT 30025E	300	360	25	2.1	107000	250000	10900	25500
NRXT 30035DD	NRXT 30035E	300	395	35	2.1	194000	405000	19700	41500
NRXT 30040DD	NRXT 30040E	300	405	40	2.1	199000	425000	20300	43000
NRXT 40035DD	NRXT 40035E	400	480	35	2.1	188000	465000	19200	47500
NRXT 40040DD	NRXT 40040E	400	510	40	2.1	226000	545000	23100	56000
NRXT 50040DD	NRXT 50040E	500	600	40	2.1	239000	625000	24400	64000
NRXT 50050DD	NRXT 50050E	500	625	50	3	325000	810000	33000	82500
NRXT 60040DD	NRXT 60040E	600	700	40	3	261000	745000	26600	75500
